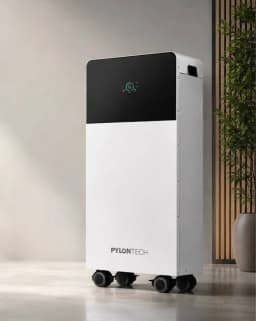

Pylontech Fidus Plus 16 kWh Lithium Battery

High-capacity low-voltage LFP battery with integrated display, Bluetooth and Wi-Fi, suitable for larger residential and commercial backup systems. High-efficiency solution designed for maximum yield and reliability in extreme environments.

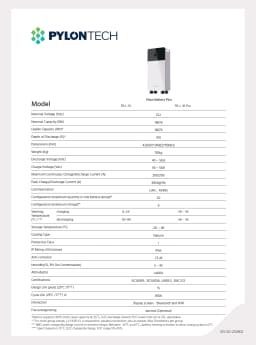

Contact Sales Datasheet

High-capacity low-voltage LFP battery with integrated display, Bluetooth and Wi-Fi, suitable for larger residential and commercial backup systems. Model: FB-L-16 / FB-L-16-Pro

Specifications

Battery Capacity16 kWh

Usable Energy15.2 kWh

Rated Voltage51.2 V

Capacity312 Ah

Battery TypeLithium Iron Phosphate (LiFePO4 / LFP)

Voltage ClassLV

IP RatingIP65

Depth of Discharge95 %

Cycle Life6000+ Cycles @ 80% DOD

Max Charge Current180 A

Max Discharge Current200 A

Peak Current300 A

CommunicationCAN / RS485

BMSIntegrated Smart BMS

Parallel UnitsUp to 16 Units

CEC ModelFB-L-16 family

Shipping Information

Weight130 kg

Dimensions435 × 240 × 900 mm

Warranty Information

Product Warranty10 Yrs Years
